Winnebago Ekko
Search Options:
3
Vehicles
Found
SELENITE EXTERIOR, VEREDIS INTERIOR, 320AH LITHIUM BATTERY, 2KW INVERTER, SOLAR, 50 GALLON FRESH WATER, GENERATOR, BASEMENT STORAGE, BATWING AWNING
Diesel
24 ft.
Motorized Class C
W1X8N36Y7TT612931
261189
Price
$209,990
**MSRP 277,885, 2.0L 4 Cyl HO Engine w/ 9 Speed Transmission**
CARBONIZED GREY EXTERIOR, BOHO INTERIOR, REAR SEATS, FORD TRANSIT AWD, LITHIUM SYSTEM, SOLAR, TWINS CONVERT TO KING BED, 50 GALLON FRESH WATER, TOW PACKAGE
Diesel
23 ft.
Motorized Class C
1FDRU8PG0RKB48207
251017
Price
$159,990
***Msrp is 226,911, Ford Transit 3.5L V-6 EcoBoost Engine**
CARBONIZED GREY EXTERIOR, VEREDIS INTERIOR, TWINS CONVERT TO KING BED, FORD TRANSIT AWD, LITHIUM SYSTEM, SOLAR, 50 GALLON FRESH WATER, TOW PACKAGE
Gasoline
4,805 miles
23 ft.
Motorized Class C
1FDRU8PG9RKB43281
251109
Price
$154,990
**Factory Demo, Ford Transit 3.5L V-6 EcoBoost Engine**

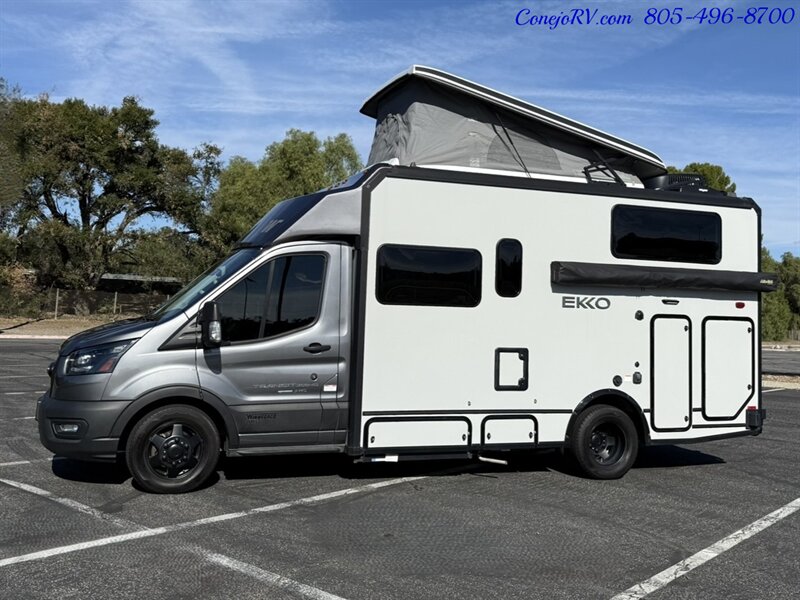

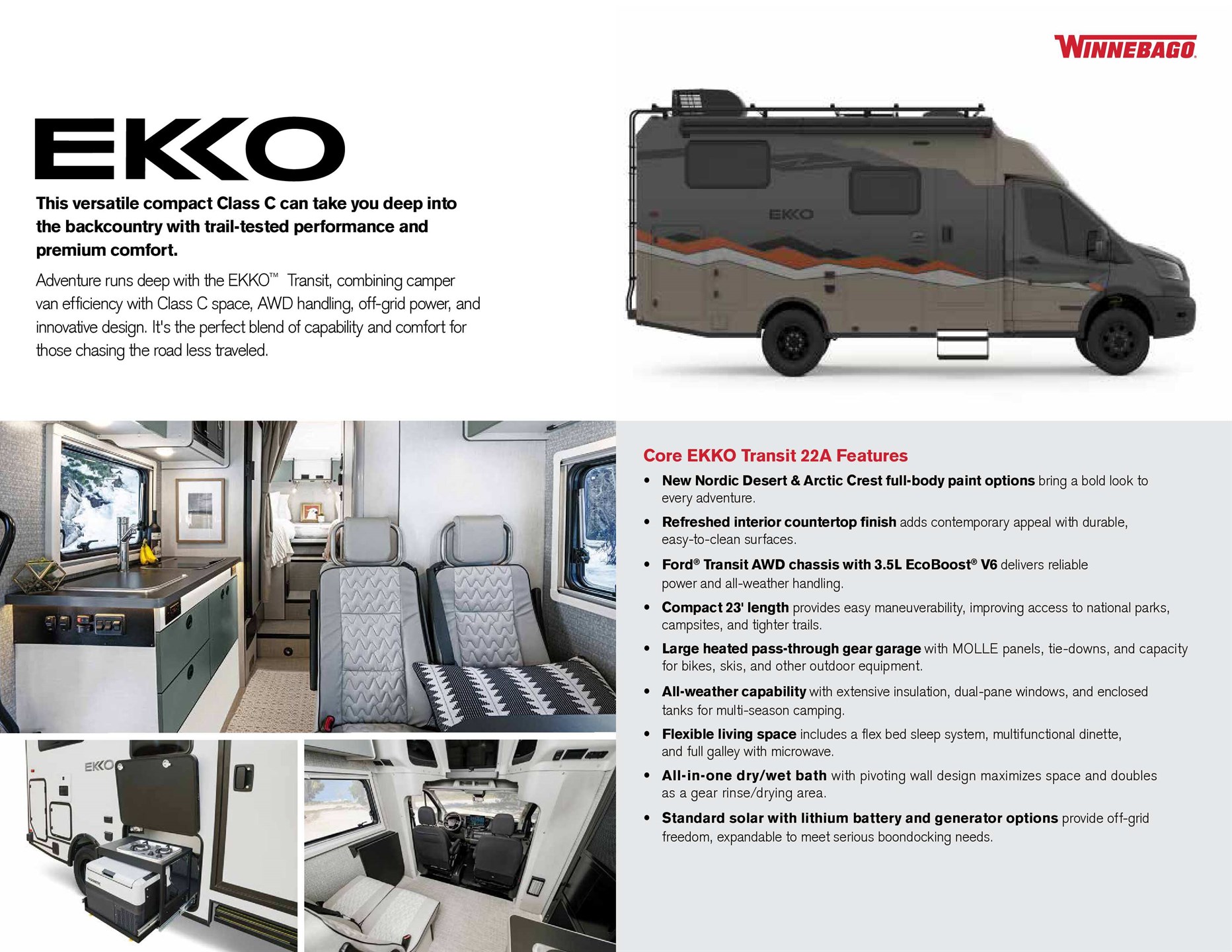

Chassis 22A
Ford 3.5L EcoBoost® V6 gas engine, 10-speed automatic
Selectshift® transmission w/overdrive
4-wheel ABS disc brakes
High-intensity discharge (HID) headlamps
Trailer hitch5 5,000-lb drawbar/500-lb. maximum vertical
tongue weight w/7-pin connector
All-season tires
Stylized performance aluminum wheels
Spare tire
Selectshift® transmission w/overdrive
4-wheel ABS disc brakes
High-intensity discharge (HID) headlamps
Trailer hitch5 5,000-lb drawbar/500-lb. maximum vertical
tongue weight w/7-pin connector
All-season tires
Stylized performance aluminum wheels
Spare tire

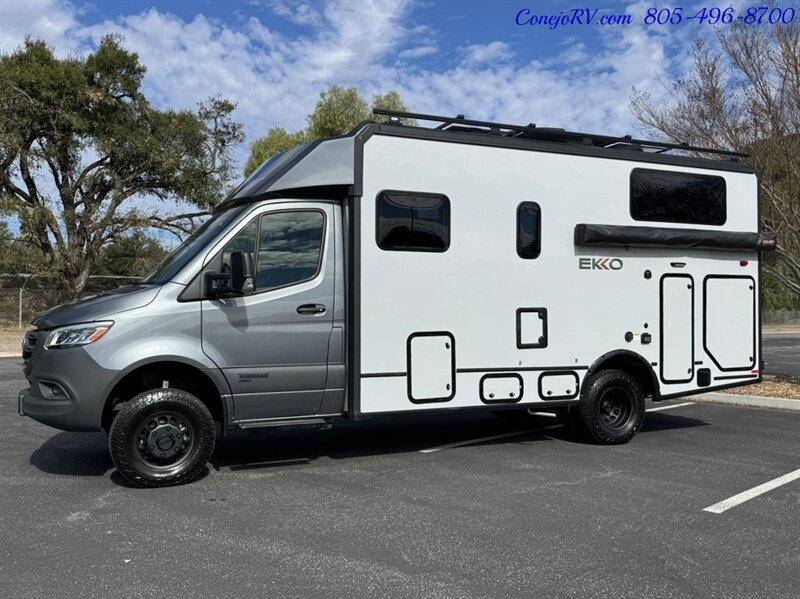

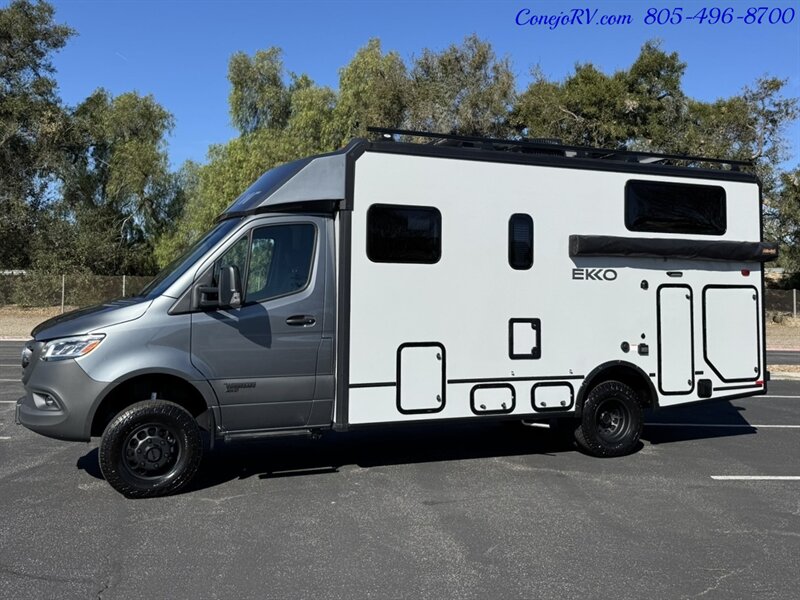

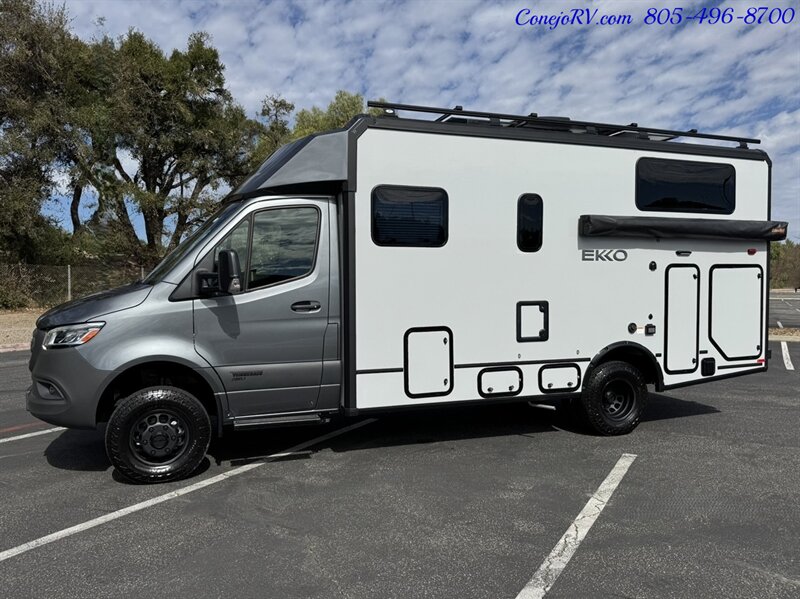

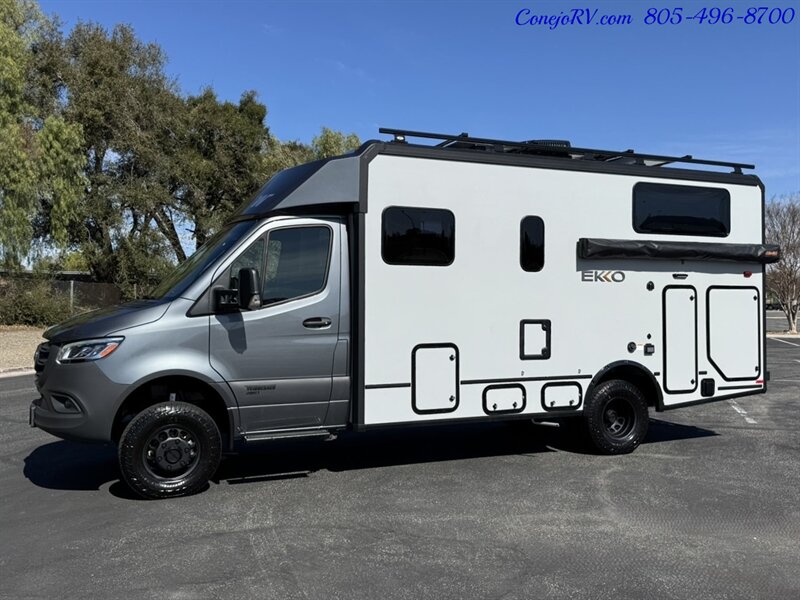

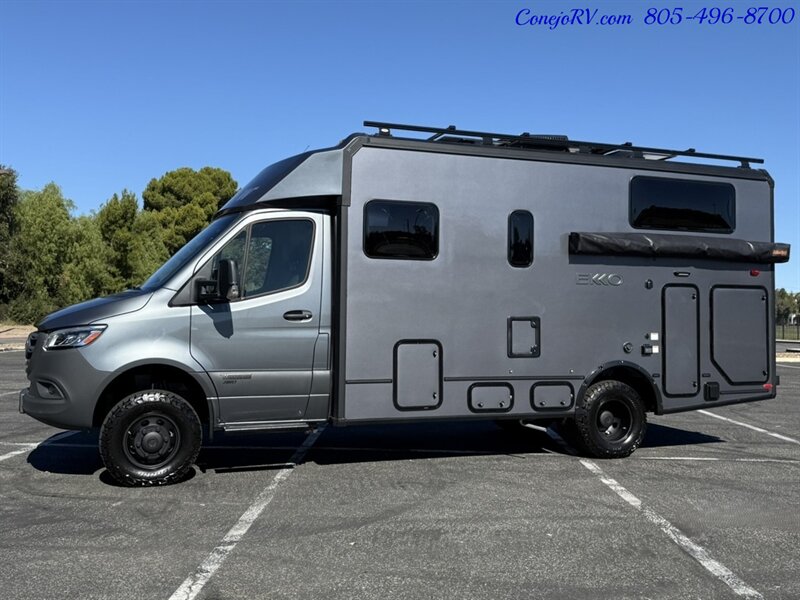

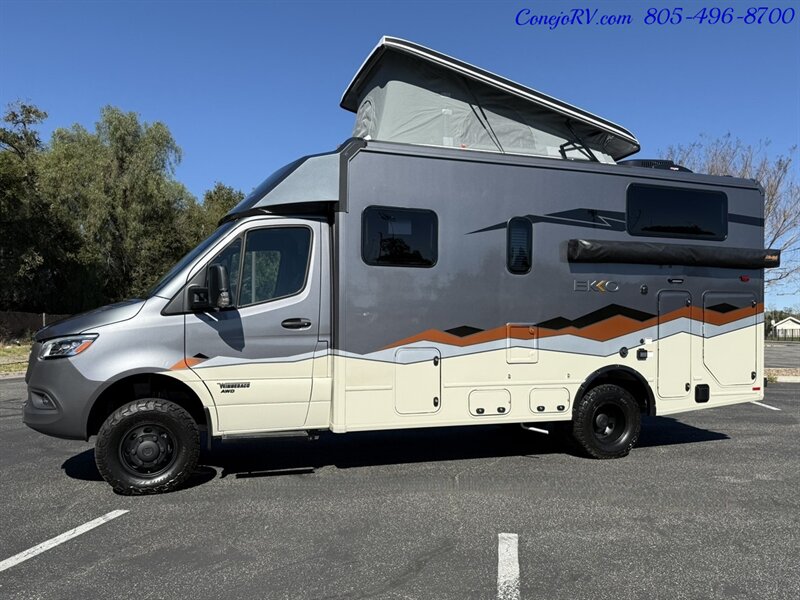

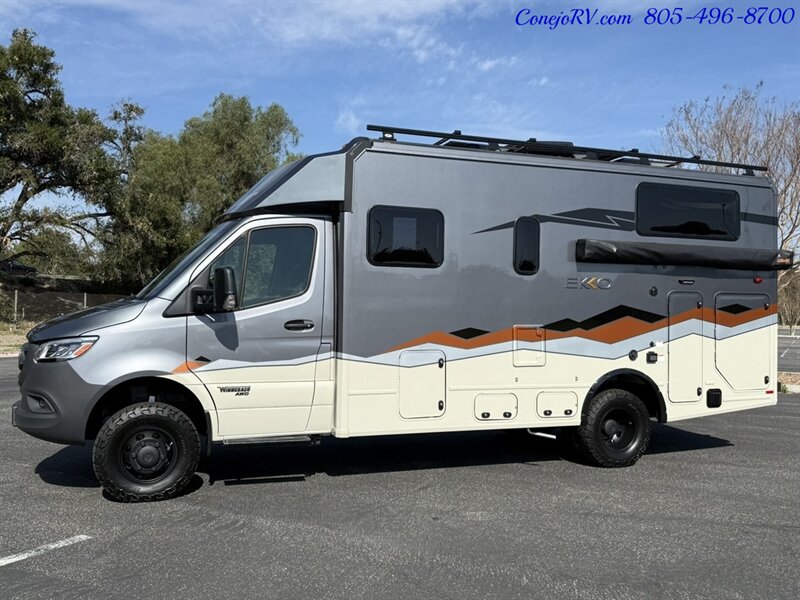

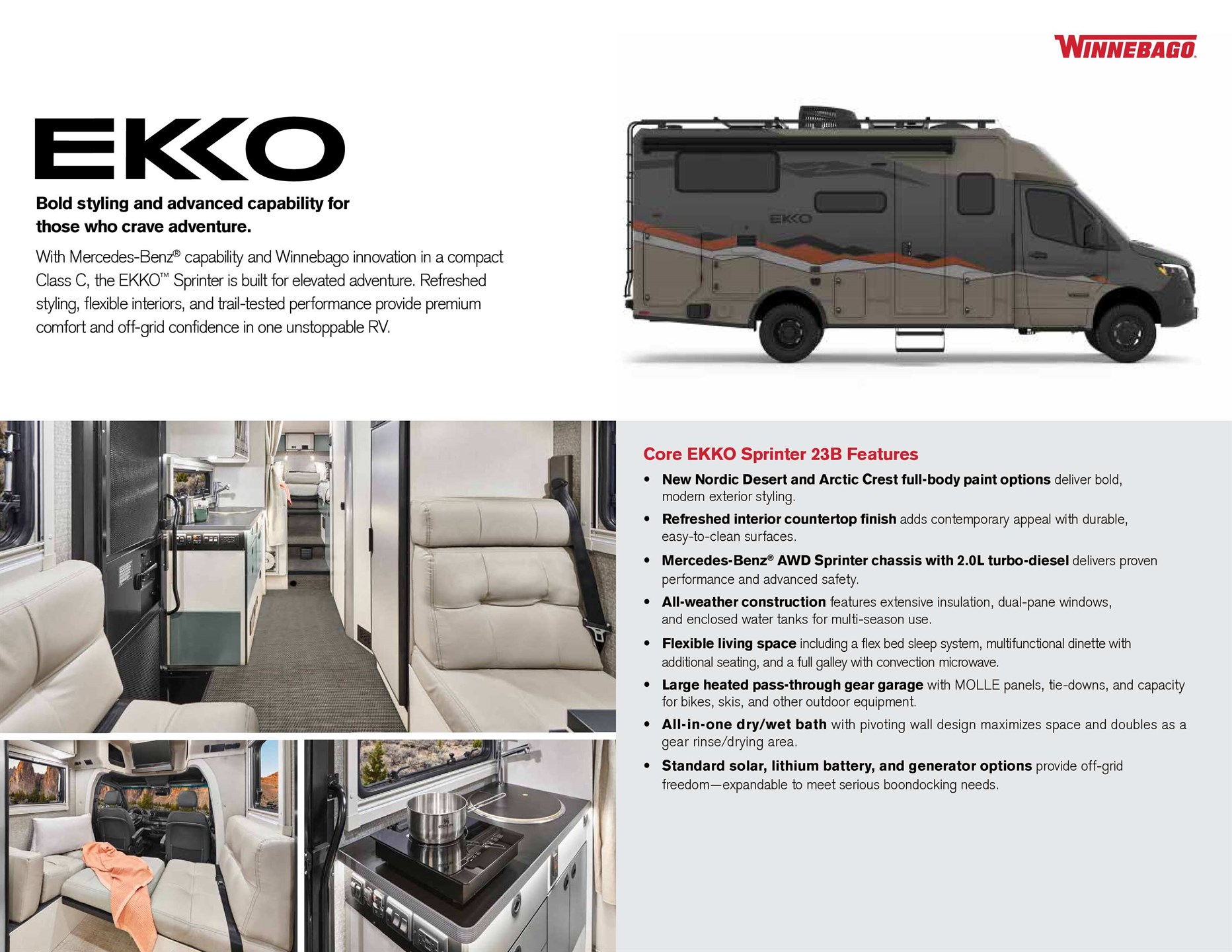

Chassis 23B
Mercedes 2.0L high-output, turbo-diesel 4-cylinder engine, 9-speed automatic transmission with overdrive
4-wheel ABS disc brakes
LED high performance headlamps
Trailer hitch 5,000-lb drawbar/500-lb. maximum vertical tongue
weight w/7-pin connector
All-terrain tires
Stylized performance aluminum wheels
Spare tire
4-wheel ABS disc brakes
LED high performance headlamps
Trailer hitch 5,000-lb drawbar/500-lb. maximum vertical tongue
weight w/7-pin connector
All-terrain tires
Stylized performance aluminum wheels
Spare tire

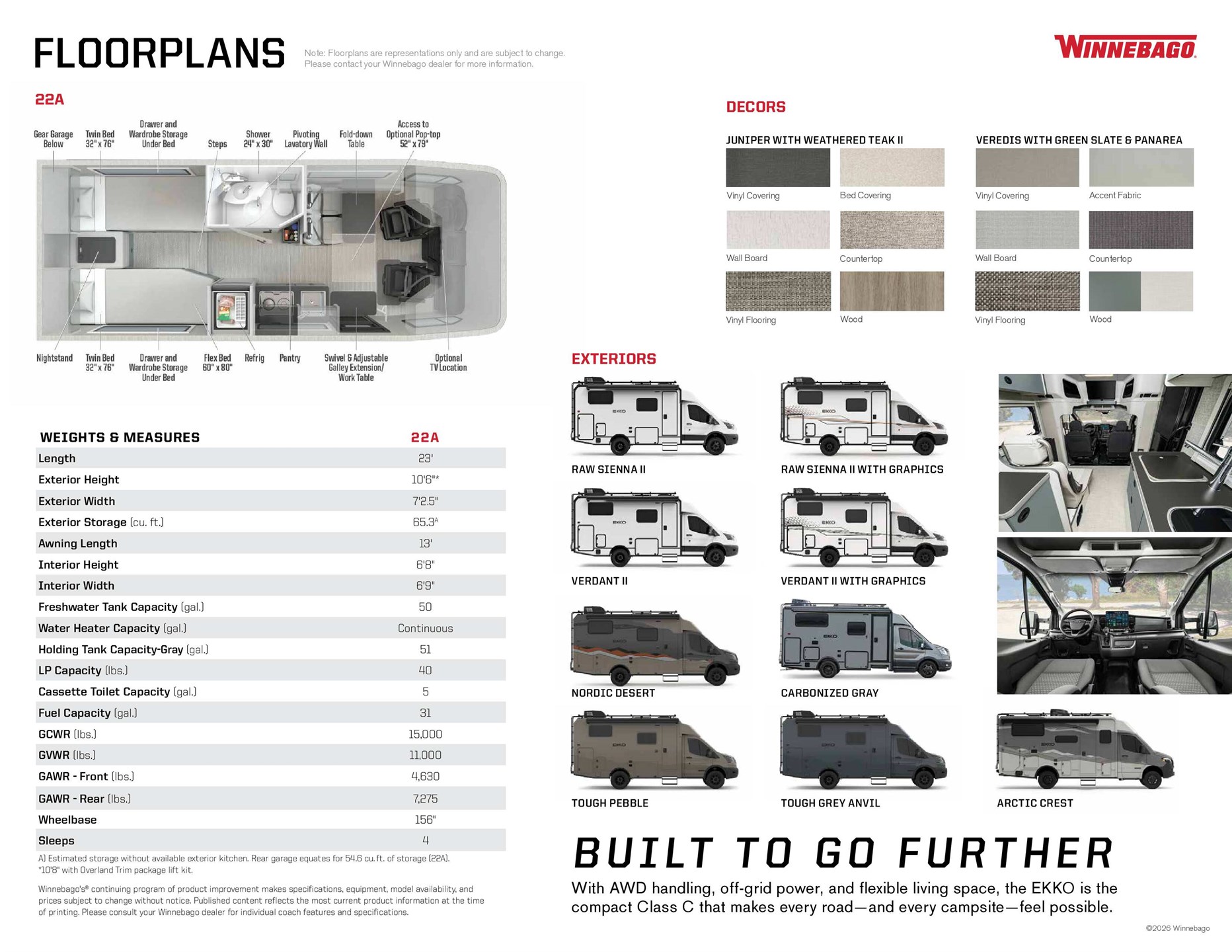

Weights & Measures 22A
| Exterior Length | 23' |
| Exterior Height | 10'6" |
| Exterior Width | 7'2.5" |
| Exterior Storage (cu. ft.) | 65.3 |
| Awning Length | 13' |
| Interior Height | 6'8" |
| Interior Width | 6'9" |
| Freshwater Tank Capacity (gal.) | 50 |
| Water Heater Capacity (gal.) | Continuous |
| Holding Tank Capacity — Gray (gal.) | 51 |
| LP Capacity (lbs.) | 40 |
| Fuel Capacity (gal.) | 31 |
| GCWR (lbs.) | 15,000 |
| GVWR (lbs.) | 11,000 |
| GAWR - Front (lbs.) | 4,630 |
| GAWR - Rear (lbs.) | 7,275 |
| Wheelbase | 156" |
| Cassette Toilet Capacity (gal.) | 5 |
| Sleeps | 4 |

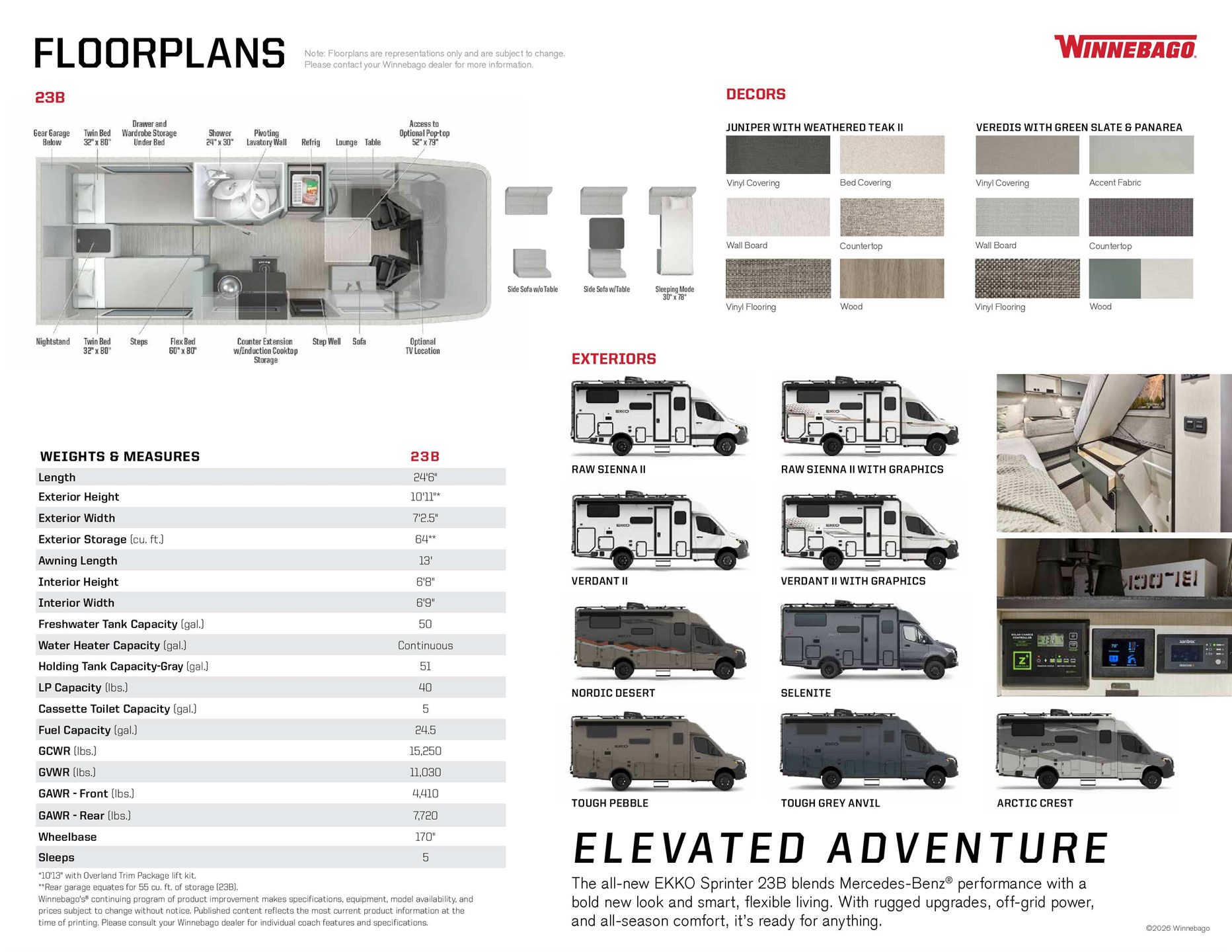

Weights & Measures 23B
| Exterior Length | 24'6" |
| Exterior Height | 10'11" |
| Exterior Width | 7'2.5" |
| Exterior Storage (cu. ft.) | 64 |
| Awning Length | 13' |
| Interior Height | 6'8" |
| Interior Width | 6'9" |
| Freshwater Tank Capacity (gal.) | 50 |
| Water Heater Capacity (gal.) | Continuous |
| Holding Tank Capacity — Gray (gal.) | 51 |
| LP Capacity (lbs.) | 40 |
| Fuel Capacity (gal.) | 24.5 |
| GCWR (lbs.) | 15,250 |
| GVWR (lbs.) | 11,030 |
| GAWR - Front (lbs.) | 4,410 |
| GAWR - Rear (lbs.) | 7,720 |
| Wheelbase | 170" |
| Cassette Toilet Capacity (gal.) | 5 |
| Sleeps | 5 |
22A Cab Conveniences
Radio/rearview monitor voice recognition system colored multi-function touchscreen w/SYNC,®navigation, AM/FM stereo with HD/SiriusXM® with 360L capability, Apple CarPlay,®Android Auto,™ Bluetooth,® voice recognition, dual USB ports and integrated rear camera display
FordPass™ Connect app
Fabric cab seats, armrest, fixed lumbar support, headrest, recline, slide and swivel
Airbags (driver and passenger)
3-point seat belts
2 cab seat lounge cushions
Intelligent access w/push-button start
Intelligent speed assist
Intersection assist
Power windows
Power mirrors w/defrost and turn signals
Power assist steering w/tilt and telescoping wheel
Intelligent adaptive cruise control
Lane-keeping assist
Pre-collision assist w/automatic emergency braking
Driver alert
Rain-sensing wipers
Wiper activated headlamps
Auto headlamps w/high beam control
Blind spot monitoring
Tire pressure monitoring system
Electronic air temperature control
Thermal cab window blinds
Thermal cab divider wall panel
FordPass™ Connect app
Fabric cab seats, armrest, fixed lumbar support, headrest, recline, slide and swivel
Airbags (driver and passenger)
3-point seat belts
2 cab seat lounge cushions
Intelligent access w/push-button start
Intelligent speed assist
Intersection assist
Power windows
Power mirrors w/defrost and turn signals
Power assist steering w/tilt and telescoping wheel
Intelligent adaptive cruise control
Lane-keeping assist
Pre-collision assist w/automatic emergency braking
Driver alert
Rain-sensing wipers
Wiper activated headlamps
Auto headlamps w/high beam control
Blind spot monitoring
Tire pressure monitoring system
Electronic air temperature control
Thermal cab window blinds
Thermal cab divider wall panel
23B Cab Conveniences
MBUX® touchscreen multimedia infotainment system w/Wi-Fi hotspot, SiriusXM® capability, Apple CarPlay,® Android Auto™ Bluetooth® intelligent voice control and rear camera
Mercedes me connect app
Heated power cab seats w/memory control and power lumbar support, heated, and manual swivel
3-point seat belts
Airbags driver and passenger
Power assist steering w/tilt and telescoping wheel
Digital rearview mirror
Active braking assist
Lane keeping assist
Attention assist
Automatic rain-sensing wipers
DISTRONIC PLUS® (adaptive cruise control)
Power mirrors w/defrost and turn signals
Auto headlamps w/high beam assist
Automatic climate control
Power door locks w/remote
Power windows
Blind spot monitoring
Dash charging station w/wireless charging, 12V and USB powerpoints
Sunvisors
Thermal cab window blinds
Thermal cab divider wall panel
Mercedes me connect app
Heated power cab seats w/memory control and power lumbar support, heated, and manual swivel
3-point seat belts
Airbags driver and passenger
Power assist steering w/tilt and telescoping wheel
Digital rearview mirror
Active braking assist
Lane keeping assist
Attention assist
Automatic rain-sensing wipers
DISTRONIC PLUS® (adaptive cruise control)
Power mirrors w/defrost and turn signals
Auto headlamps w/high beam assist
Automatic climate control
Power door locks w/remote
Power windows
Blind spot monitoring
Dash charging station w/wireless charging, 12V and USB powerpoints
Sunvisors
Thermal cab window blinds
Thermal cab divider wall panel
22A Details
Interior
LED ceiling lights
Tinted dual-pane euro acrylic windows w/screen and cassette shade
Dinette seating w/3-point seat belts
Pull-up/fold down table
Color touchscreen systems monitor panel
Vinyl flooring throughout
Satellite system ready
Amplified digital HDTV antenna
Roof wiring access port
Assist bar
RAM® Tough-Track™ Mount (dinette overhead)
110V, 12V, USB charging ports
Deluxe powered ventilator fan w/remote
Accent lighting
Optional Equipment:
Entertainment system smart Blu-ray™ disc player, Bluetooth® soundbar and 24" HDTV
Front cab air mattress 30" x 65" w/support base, cordless pump, repair kit and storage bag
Electrical System
Auxiliary start circuit
Automatic dual-battery charge control
Coach battery disconnect system
Dedicated second alternator to charge coach batteries
Exterior AC duplex receptacle
Exterior TV jack
30-amp. power cord
220-watt flexible surface solar panel/battery charger(w/pop-top)
2,000-watt pure sine wave inverter/80-amp charger
(1) 320-amp-hour Lithionics® lithium ion battery w/Bluetooth® control package and battery pack heating system
2,800-watt gas generator
(2) 190-watt and (1) 120-watt solar panel/battery charger
Option to remove: 2,800-watt gas generator
Additional 320-amp-hour Lithionics® lithium-ion battery(Requires generator delete w/pop-top,
tailgate package, and full-body paint)
Galley
Laminate countertops
5.3 cu. ft. single door 12V refrigerator/freezer
Stainless steel sink w/sink cover and single control faucet
Galley drawer w/counter extension base (induction cooktop storage)
Microwave/convection oven w/touch controls
Portable single burner induction range top
Water pump switch
Bath
Medicine cabinet
Mirror
Oxygenics® shower head
Dry/wet bath w/pivoting wall
Robe hooks
24" x 30" shower w/wall surround
Shower curtain
Molded round sink with single control faucet
Tissue holder
Swiveling cassette toilet
Bedroom
Flex bed kit
Wardrobe/drawer storage below beds
Metal clothes rod
Room divider curtain
Reading lights
110V, 12V, USB-A & USB-C charging ports
32" x 80" twin beds w/WinnSleep® System
Exterior
Heated gear garage w/L-track cargo tie down system,
removable floor liner, 110V/12V charging ports and LED lighting
Mud flaps
Powered patio awning w/LED lighting and Bluetooth® control
Ladder (N/A w/pop-top)
LED porch light w/interior switch
Aluminum cab steps w/logoed tread and pet loop attachment
Optional Equipment:
Batwing awning (Driver's side and backwall)
Roof rack (N/A w/pop-top)
Option to remove powered patio awning w/LED lighting and Bluetooth® control
Option to remove exterior graphics (Raw Sienna II and Verdant II)
Heating & Cooling System
13,500 BTU air conditioner
Truma® VarioHeat™ comfort
Notes and Exclusions
Disclaimer: Winnebago recommends following the winter use guidelines and winterization procedures outlined in your owner's manual whenever camping in freezing conditions.
Plumbing System
Insulated water service center houses water center control panel, hooks,
water pump switch, cable TV input,fresh water drain and portable satellite dish hook-up
Truma® AquaGo® tankless comfort plus water heater
w/recirculation pump
On-demand water pump
Cold water purification system (galley only)
Heated holding tank compartment (above floor)
10' sewer hose
Shower drain pump
LPG accessory connection (patio area)
(2) removable 20lb. LP cylinder tanks
Safety
3-point seat belts
LP smoke and carbon monoxide detectors
Fire extinguisher
Ground fault interrupter
High-mount brake lamps
Fog lamps
(1) Upper child seat tether anchor
Warranty
12-month/15,000-limited warranty
36-month/36,000-mile limited warranty on structure
10-year limited parts-and-labor warranty on roof skin
* Estimated storage without available exterior kitchen. Rear garage equates for 54.6 cu.ft. of storage.
** Disclaimer: Winnebago recommends following the winter use guidelines and winterization procedures outlined in your owner's manual whenever camping in freezing conditions.
Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle.
In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.
***Base Manufacturers Suggested Retail Price shown. Base price does not include tax, title, license, delivery charges or optional features. Prices are subject to change without notice.

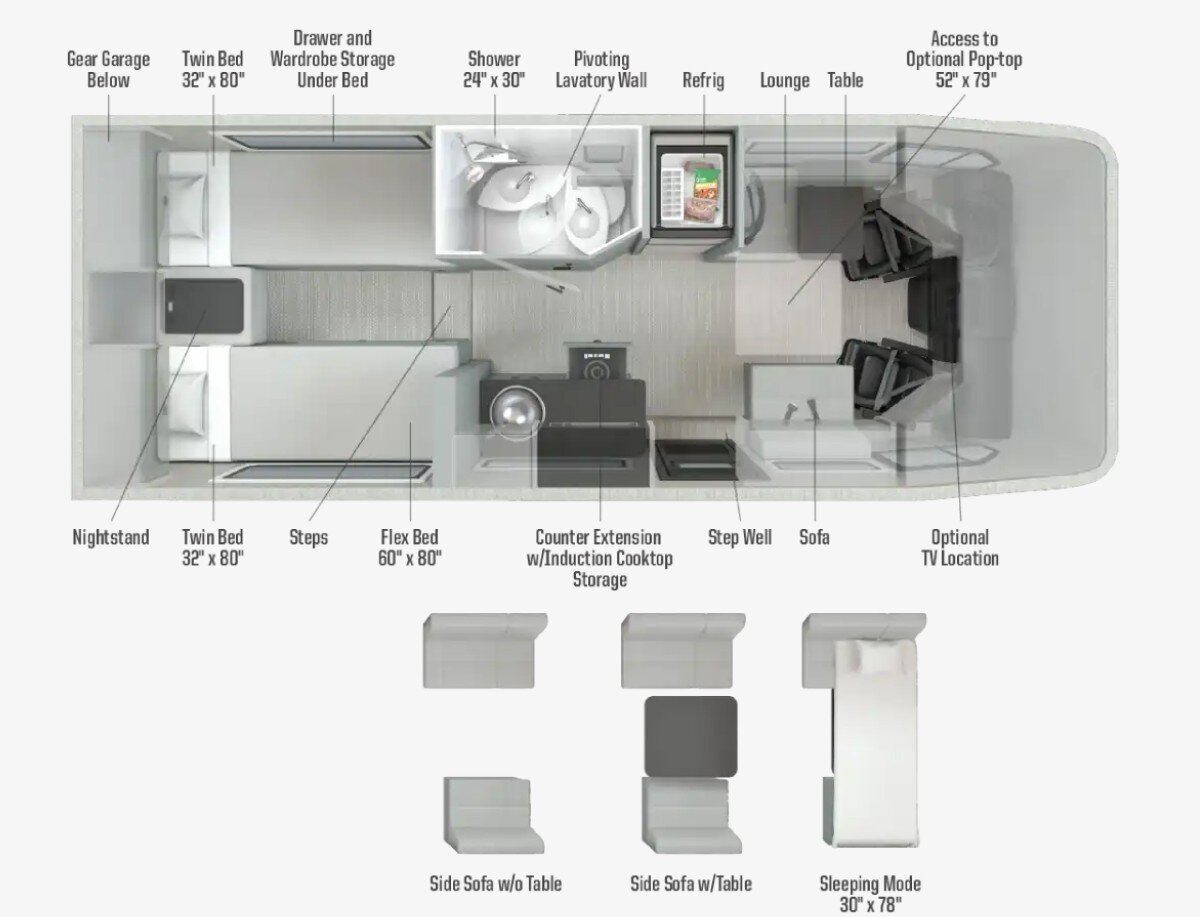

23B Details
Interior
LED ceiling lights
Tinted dual-pane euro acrylic windows w/screen and cassette shade
Pull-up/fold down table
Color touchscreen systems monitor panel
Vinyl flooring throughout
Satellite system ready
Amplified digital HDTV antenna
Roof wiring access port
Assist bar
110V, 12V, USB-A & USB-C charging ports
Deluxe powered ventilator fan w/remote
Accent lighting
Forward facing lounge
Removable pedestal table
Side facing fixed sofa w/lap belt
RAM® Tough-Track™ Mount (dinette overhead)
Electrical System
Auxiliary start circuit
Automatic dual-battery charge control
Coach battery disconnect system
Dedicated second alternator to charge coach batteries
Exterior AC duplex receptacle
Exterior TV jack
30-amp. power cord
220-watt flexible surface solar panel/battery charger(w/pop-top)
2,000-watt pure sine wave inverter/80-amp charger
(1) 320-amp-hour Lithionics® lithium ion battery
w/Bluetooth® control package and battery pack heating system
2,500-watt LP generator
(2) 215-watt and (1) 100-watt solar panel/battery charger
Optional Equipment:
Option to remove: 2,500-watt LP generator
(1) 630-amp-hour lithium ion battery (Requires generator delete w/pop-top)
Galley
Laminate countertops
5.3 cu. ft. single door 12V refrigerator/freezer
Stainless steel sink w/sink cover and single control faucet
Galley drawer w/counter extension base (induction cooktop storage)
Microwave/convection oven w/touch controls
Portable single burner induction range top
Water pump switch
Bath
Medicine cabinet
Mirror
Oxygenics® shower head
Dry/wet bath w/pivoting wall
Robe hooks
24" x 30" shower w/wall surround
Shower curtain
Molded round sink with single control faucet
Tissue holder
Swiveling cassette toilet
Bedroom
Flex bed kit
Wardrobe/drawer storage below beds
Metal clothes rod
Room divider curtain
Reading lights
110V, 12V, USB-A & USB-C charging ports
32" x 80" twin beds w/WinnSleep® System
Exterior
Heated gear garage w/L-track cargo tie down system,
removable floor liner, 110V/12V charging ports and LED lighting
Mud flaps
Powered patio awning w/LED lighting and Bluetooth® control
Ladder (N/A w/pop-top)
LED porch light w/interior switch
Aluminum cab steps w/logoed tread and pet loop attachment
Optional Equipment:
Batwing awning (Driver's side and backwall)
Roof rack (N/A w/pop-top)
Option to remove powered patio awning w/LED lighting and Bluetooth® control
Option to remove exterior graphics (Raw Sienna II and Verdant II)
Heating & Cooling System
13,500 BTU air conditioner
Truma® VarioHeat™ comfort
Plumbing System
Insulated water service center houses water center control panel, hooks,
water pump switch, cable TV input,fresh water drain and portable satellite dish hook-up
Truma® AquaGo® tankless comfort plus water heater
w/recirculation pump
On-demand water pump
Cold water purification system (galley only)
Heated holding tank compartment (above floor)
10' sewer hose
Shower drain pump
LPG accessory connection (patio area)
(2) removable 20lb. LP cylinder tanks
Safety
3-point seat belts
LP smoke and carbon monoxide detectors
Fire extinguisher
Ground fault interrupter
High-mount brake lamps
Fog lamps
(1) Upper child seat tether anchor
Warranty
12-month/15,000-limited warranty
36-month/36,000-mile limited warranty on structure
10-year limited parts-and-labor warranty on roof skin
Notes and Exclusions
* Estimated storage without available exterior kitchen. Rear garage equates for 54.6 cu.ft. of storage.
** Disclaimer: Winnebago recommends following the winter use guidelines and winterization procedures outlined in your owner's manual whenever camping in freezing conditions.
Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle.
In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.
***Base Manufacturers Suggested Retail Price shown. Base price does not include tax, title, license, delivery charges or optional features. Prices are subject to change without notice.
22A Electrical System
Auxiliary start circuit
Automatic dual-battery charge control
Coach battery disconnect system
Dedicated second alternator to charge coach batteries
Exterior AC duplex receptacle
Exterior TV jack
2,800-watt gas generator
30-amp power cord
(1) 320-amp-hour Lithionics® lithium ion battery w/Bluetooth control package and battery pack heating system
(2) 170-watt and (1) 115-watt solar panel/battery charger (220-watts flexible surface solar panel w/optional pop-top)
2,000-watt pure sine wave inverter/80-amp charger
Optional Equipment:
Option to remove: 2,800-watt gas generator
Add (1) additional 320-amp-hour Lithionics® lithium ion battery (Generator delete mandatory with this option)
Automatic dual-battery charge control
Coach battery disconnect system
Dedicated second alternator to charge coach batteries
Exterior AC duplex receptacle
Exterior TV jack
2,800-watt gas generator
30-amp power cord
(1) 320-amp-hour Lithionics® lithium ion battery w/Bluetooth control package and battery pack heating system
(2) 170-watt and (1) 115-watt solar panel/battery charger (220-watts flexible surface solar panel w/optional pop-top)
2,000-watt pure sine wave inverter/80-amp charger
Optional Equipment:
Option to remove: 2,800-watt gas generator
Add (1) additional 320-amp-hour Lithionics® lithium ion battery (Generator delete mandatory with this option)
23B Electrical System
Auxiliary start circuit
Automatic dual-battery charge control
Coach battery disconnect system
Dedicated second alternator to charge coach batteries
Exterior AC duplex receptacle
Exterior TV jack
2,500-watt LP generator
30-amp. power cord
(2) 215-watt and (1) 100-watt solar panel/battery charger
220-watt flexible surface solar panel/battery charger (w/pop-top)
2,000-watt pure sine wave inverter/80-amp charger
320-amp-hour Lithionics® lithium ion battery w/Bluetooth control package and battery pack heating system
Optional Equipment:
Option to remove: 2,500-watt LP generator
(1) 630-amp-hour Lithionics® lithium ion battery (generator delete mandatory with this option)
